Reinforcement Detailing

Verify lap lengths, splices and hooks for various reinforcement configurations.

Quickly check your concrete reinforcement detailing requirements. Select tension or compression, rebar size, the rebar end type (straight, hooked, or headed) and other parameters to quickly view the required lengths per ACI 318.


Design Checks:


  • Tension development length

  • Compression development length

  • Hooked development length (and required hook length)

  • Splice length (Class A or Class B)


Want to explore more about reinforcement detailing and development lengths? Check out our blog post here.

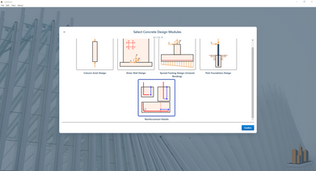

Calculation Screenshots
