Introduction
Concrete shear wall design is a cornerstone of modern structural engineering, crucial for enhancing the lateral stability and structural resilience of buildings. This process involves rigorous adherence to the ACI 318 code, which provides detailed guidelines for ensuring the structural adequacy of shear walls. In this post, we will address the fundamental components of designing concrete shear walls, including essential checks for minimum reinforcement, flexural capacity, shear resistance, and axial capacity. These checks are pivotal in verifying that the shear wall can withstand various applied loads, maintain its integrity, and perform effectively under diverse conditions.
Factors to Consider when Designing for Concrete Shear Walls
Designing concrete shear walls involves multiple factors that ensure they can effectively resist various loads and perform as intended in the structural system. Key considerations include:
Adequate Wall Thickness:
Purpose: Ensures the wall has the necessary stiffness and strength.
Considerations: Optimize thickness to handle bending, shear, and axial loads while preventing issues like buckling or excessive deflection.
Proper Reinforcement Detailing:
Purpose: Controls cracking and enhances the wall's ductility.
Considerations: Follow ACI 318 guidelines for minimum vertical and horizontal reinforcement, ensuring proper detailing around openings and boundaries for effective load transfer.
Accurate Estimation of Load Combinations:
Purpose: Ensures the wall can withstand various applied loads, including seismic and wind forces.
Considerations: Include gravity and lateral load factors, with special attention to seismic design for energy dissipation through ductile behavior.
Consideration of Seismic Requirements:
Purpose: Enhances the wall's ability to absorb and dissipate energy during an earthquake.
Considerations: Design for ductility with increased confinement in boundary elements and use specialized detailing to comply with seismic codes.
Construction Practicalities:
Purpose: Ensures the wall achieves the desired structural performance and is practical to build.
Considerations: Account for formwork, concrete placement, and curing to prevent defects, coordinating with construction teams to address practical implementation challenges.
Integration with Other Structural Elements:
Purpose: Provides stability and performance for the entire building.
Considerations: Ensure shear walls are effectively connected with slabs, beams, and foundations, creating a cohesive structural system for efficient load resistance and distribution.
Important Details to Be Aware of in Concrete Shear Walls
Concrete shear walls are extensively used in buildings to provide lateral stability against wind and seismic forces. They are often employed in high-rise buildings, parking structures, and residential towers to resist lateral loads and provide stiffness. Shear walls can be designed with openings for windows and doors, requiring careful detailing around these areas to ensure load transfer and prevent stress concentrations. In practical applications, these walls are integrated with other structural elements such as slabs and beams, forming a rigid frame that enhances the building's overall stability and performance under lateral loads. Effective shear wall design contributes significantly to the resilience and safety of the structure.
Example Problem (Solutions Provided Using CalcBook): Problem Statement:
Step 1: Determine Loads

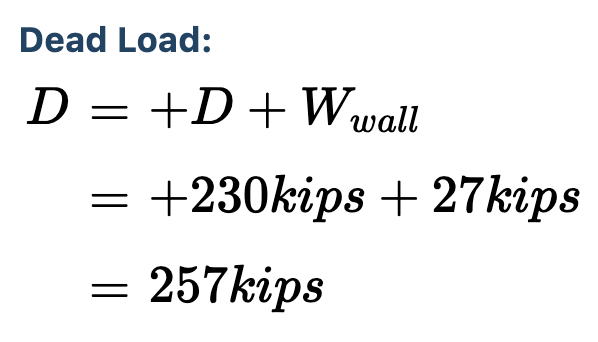

Determine dead load including self weight of wall:
It is found that the controlling load combination is LRFD Load Combination 5. Calculate flexure, shear, and axial demands:
Step 2: Minimum Reinforcement Check
Step 3: Flexural Capacity
Step 4: Shear Capacity
Step 5: Axial Capacity
Step 6: Determine Controlling Demand/Capacity Ratio:
Conclusion:
In conclusion, the design of concrete shear walls is essential for providing lateral stability and enhancing the seismic resilience of buildings. By following ACI 318 guidelines, engineers can ensure that shear walls are properly detailed, capable of withstanding diverse loads, and effectively integrated into the structural system. Key considerations such as wall thickness, reinforcement detailing, load estimation, and construction practices contribute to the overall performance and durability of these structural elements. Practical applications demonstrate the importance of meticulous design to maintain the integrity of buildings, particularly under challenging conditions. Effective shear wall design remains a critical aspect of modern structural engineering, safeguarding structures and their occupants.
