Introduction
In structural engineering, single angles are widely used as members in various steel applications. Their versatility and efficiency make them a popular choice for structural framing members. Understanding the principles behind their design, the factors affecting their capacity, and utilizing appropriate equations and provisions from the AISC Steel Design Manual can greatly enhance the efficiency and accuracy of single angle design.
Geometric Axis Bending and Principal Axis Bending
Before delving into the design considerations, it is essential to understand the two types of bending that occur in single angles: geometric axis bending and principal axis bending.
Geometric axis bending refers to the bending that occurs about the centroidal axis of the angle section. In this case, the flanges and the web of the angle experience compression and tension, respectively, resulting in a moment capacity about the geometric axis.
Figure 1: Geometric Axis Bending
Principal axis bending, on the other hand, involves the rotation of the angle section about its principal axis. This type of bending induces both bending and torsion within the angle section, affecting its moment capacity.
Figure 2: Principal Axis Bending
Factors Affecting the Moment Capacity of Single Angles
Several factors influence the moment capacity of single angles in flexural design. Understanding these factors is crucial for selecting appropriate angles and ensuring structural integrity. Here are some key considerations:
Angle Size: The size of the angle section plays a significant role in determining its capacity. Larger angles generally possess greater bending resistance due to increased section modulus.
Angle Thickness: Thicker angles can withstand higher bending moments compared to thinner ones. The thickness affects both the moment capacity and the shear capacity of the angle.
Angle Leg Length: The length of the legs in a single angle affects its moment capacity. Longer legs typically result in greater resistance to bending.
Material Properties: The material properties of the angle, such as yield strength and elastic modulus, have a direct impact on its flexural capacity. High-strength materials can withstand higher stresses and moments.
Effective Length: The effective length of the angle section, influenced by its end conditions and support conditions, determines its stability under bending. The design must consider the buckling behavior of the angle.
Loading Conditions: The applied loads and their distribution along the length of the angle significantly influence its moment capacity. Uniformly distributed loads, point loads, and concentrated loads should all be considered during the design process.
Example Problem (Solutions Provided Using CalcBook):
Problem Statement
Step 1: Design Inputs
Step 2: Geometric & Material Properties
Step 3: Calculate Demands
Step 4: Determine Flexural Capacity About the W Principal Axis
Step 5: Determine Flexural Capacity About the Z Principal Axis

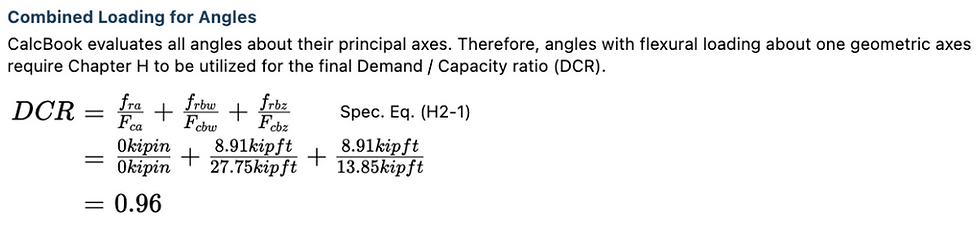

Step 6: Check Combined Loading
Conclusion
Designing single angles for flexural applications requires a thorough understanding of geometric axis bending, principal axis bending, and the factors influencing their capacity. The AISC Steel Design Manual provides industry-standard specifications, while CalcBook Software streamlines the calculation process, enabling engineers to design single angles efficiently and accurately. By leveraging these resources, structural engineers can enhance their design capabilities and contribute to the construction of safe and robust steel structures.
